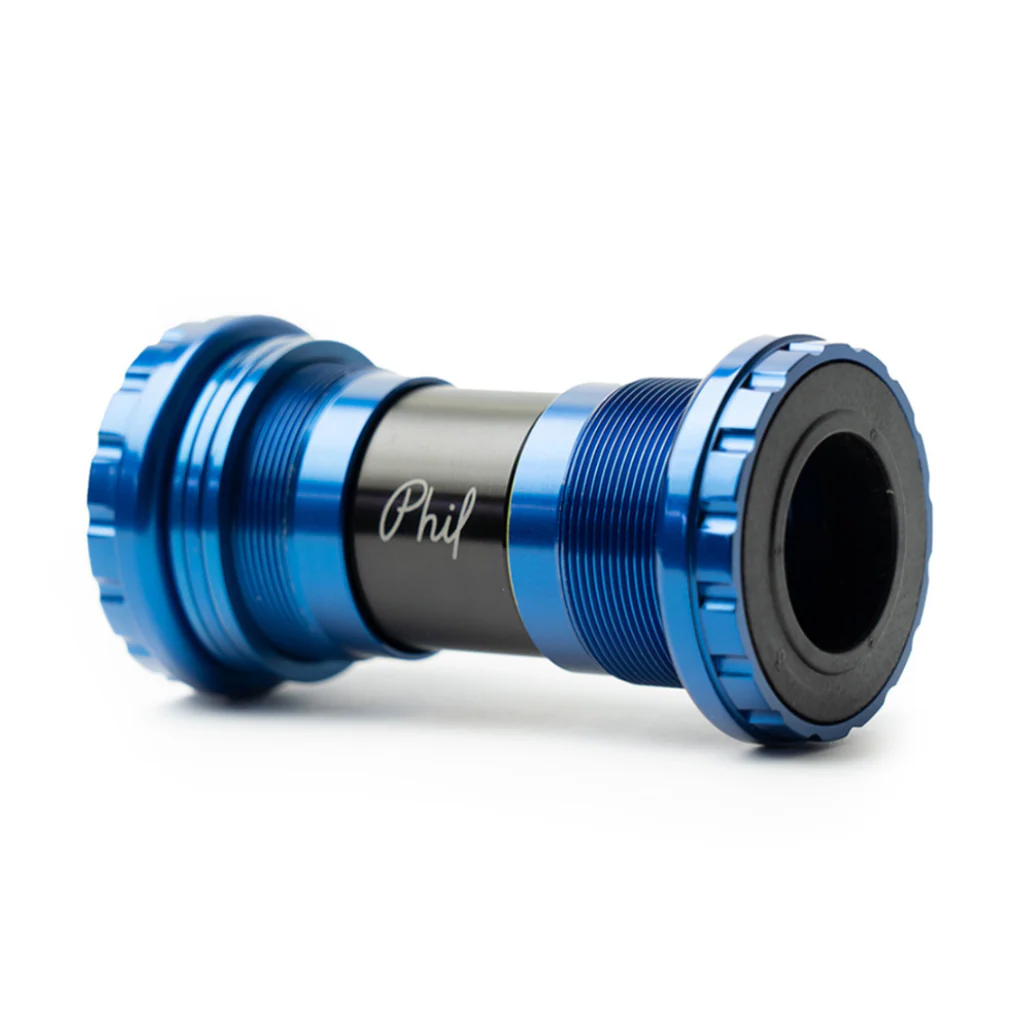

Phil Wood Outboard Bottom Bracket - 24mm
Phil Wood manufactures their OBB cups, center sleeves and spacers for from US-produced 7075 aluminum and stainless steel, machined in-house at their facility in San Jose CA.
This version is compatible with cranksets having a hollow 24mm spindle (like Sugino 75 Direct Drive & DD2, and Andel Deluxe).
Aluminum cups available in 8 colors, stainless steel is polished silver.
Specifications
• 68/73mm English-threaded (BSA)
• compatible with all 24mm Hollowtech II-type cranksets
• high-polish stainless steel or anodized aluminum cups
• CNC-machined aluminum center sleeve w/ o-ring seals
• sealed cartridge bearings
• spacers included (you will need to experiment to see if you need to use them for your application)
• use Phil Wood OBB Tool or Park Tool BBT-19.2 for installation & removal
• weight: 132g (aluminum)/222g (stainless steel)
Installation instructions
Description
Phil Wood manufactures their OBB cups, center sleeves and spacers for from US-produced 7075 aluminum and stainless steel, machined in-house at their facility in San Jose CA.
This version is compatible with cranksets having a hollow 24mm spindle (like Sugino 75 Direct Drive & DD2, and Andel Deluxe).
Aluminum cups available in 8 colors, stainless steel is polished silver.
Specifications
• 68/73mm English-threaded (BSA)
• compatible with all 24mm Hollowtech II-type cranksets
• high-polish stainless steel or anodized aluminum cups
• CNC-machined aluminum center sleeve w/ o-ring seals
• sealed cartridge bearings
• spacers included (you will need to experiment to see if you need to use them for your application)
• use Phil Wood OBB Tool or Park Tool BBT-19.2 for installation & removal
• weight: 132g (aluminum)/222g (stainless steel)
